Electrostatic Precipitators
Designers-35 Years-Manufacturers
IndustriaI-Commercial-Residential
At Rated Capacity: 96% DOP Efficient on .01 gm
Highest Rated Performance Efficiency in its Class
Two Stage Designs in Single or Two Part Cells

Products & Services Include: Applications For Use Include:
1) Packaged designs to 40,000 CFM+ 1) Oil and oil Mist 8) Restaurant grease 15) Rubber & Tar smoke
2) Ducted or self-contained units 2) Welding smoke 9) Asphalt smoke 16) Vacuum Pump Smoke
3) Water wash spray manifolds 3) Textile dust 10) Burn rooms 17) Casting & furnace smoke
4) Automatic wash cycle controls 4) Plasticizer smoke 11) Photo lab 18) Glass molding smoke
5) Custom control panels, PLC 5) Cigarette smoke 12) Computer room 19) Baking/roasting smoke
6) Pre & Post filtration collars 6) Diesel Smoke 13) Pollen, molds 20) Curing & heat treating
7) Custom cells or system design 7) Printing ink 14) Carbide dust 21) Lead fume

STANDARD PRODUCTS OR CUSTOM CELL & CABINET DESIGN CAPABILITY

IUNG CHENG FA ELECTRONIC AIRCLEANER
RANGE OF EFFECTIVENESS

THE SIZE OF THE AIRBORNE PARTICLES IN MICRONS
(1 micron equals 1/25,400th of an inch)

PARTICLE SIZE IN MICRONS:







50 10 5 1 0.1 0.03 0.01
Electronic aircleaner EFFECTIVE








Mechanical filter EFFECTIVE INEFFECTIVE
Minerals






lint




fly ash


dust








Smoke & Fumes










fumes






tobacco smoke




oil smoke







Organic plant matter






pollen






fungus & spores





bacteria






viruses







Fog & Mist






fog & mist










visible with unaided eye visible with microscope visible with electron microscope

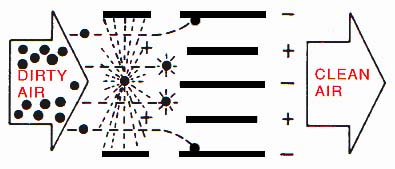

How It Works!
How it works

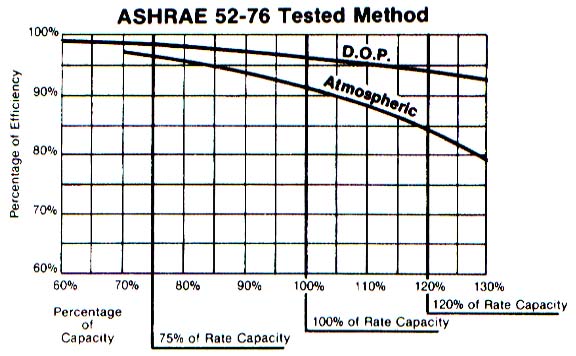

Efficiency Ratio

Efficiency Ratio
