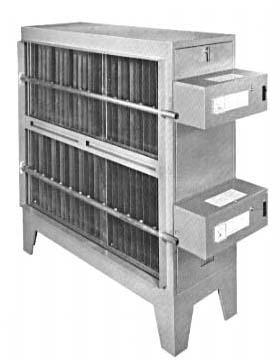

IUNG CHENG FA MAGIC MAID TM DELUXE PRECIPITATOR
COMMERCIAL & INDUSTRIAL, IN-DUCT (HORIZONTAL FLOW)
 |
 |
3 through 8 Ton Units |
||||||
Specifications* |
Model 3-12H1 |
Model 3-16H1 |
Model 3-20H1 |
Model 3-24H1 |
Model 3-30H1 |
Model 3-32H2 |
Air Flow Cap. at 90% Efficiency |
1200 cfm |
1600 cfm |
2000 cfm |
2400 cfm |
3000 cfm |
3200 cfm |
Air Conditioner Tons |
3 Tons |
4 Tons |
5 Tons |
6 Tons |
7-1/2 Tons |
8 Tons |
Air Flow Resist. (WG) |
.10" |
.10" |
.10" |
.10" |
.10" |
.10" |

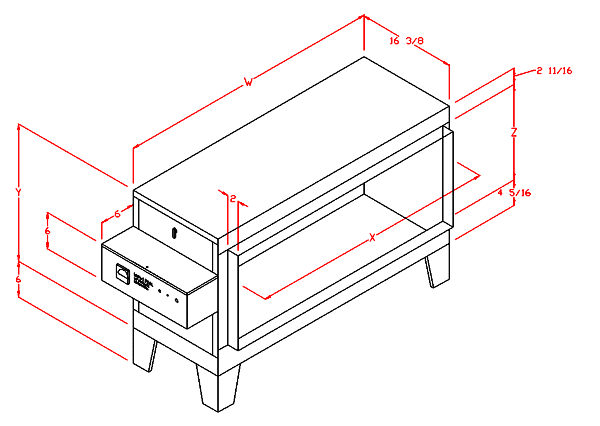

Cabinet Dimensions |
||||||
W- Width |
26-9/16" |
36-3/16" |
44-7/16" |
51-5/16" |
65-3/4" |
36-3/16" |
X- Duct Opening |
23-1/16" |
32-11/16" |
40-15/16" |
47-13/16" |
62-1/4" |
32-11/16" |
Y- Height |
23" |
23" |
23" |
23" |
23" |
41-1/2" |
Z- Duct Height |
15-7/8" |
15-7/8" |
15-7/8" |
15-7/8" |
15-7/8" |
34-3/8" |
Cell Removal Clear. |
27" |
20" |
25" |
27" |
25" |
20" |
Approx. Shipping Wt. |
140 Lbs. |
175 Lbs. |
200 Lbs. |
225 Lbs. |
250 Lbs. |
300 Lbs. |
Power Packs: |
1 |
1 |
1 |
1 |
1 |
2 |
Volts |
115 |
115 |
115 |
115 |
115 |
115 |
Hertz |
60 |
60 |
60 |
60 |
60 |
60 |
Watts (Per Pack) |
30 |
40 |
45 |
50 |
45 |
25 |
Integral Wash Systems |
||||||
Water Inlet |
3/4" |
3/4" |
3/4" |
3/4" |
3/4" |
3/4" |
Drain Flange, IPS |
2" |
2" |
2" |
2" |
2" |
2" |
Water Req. at 40 PSI Per Tier (GPM) |
11 |
14 |
20 |
22 |
29 |
14 |
10 through 22-1/2 Ton Units |
||||||
Specifications* |
Model 3-40H2 |
Model 3-48H2 |
Model 3-60H2 |
Model 3-60H3 |
Model 3-72H3 |
Model 3-90H3 |
Air Flow Cap. at 90% Eff. |
4000 cfm |
4800 cfm |
6000 cfm |
6000 cfm |
7200 cfm |
9000 cfm |
Air Conditioner Tons |
10 Tons |
12 Tons |
15 Tons |
15 Tons |
18 Tons |
22-1/2 Tons |
Air Flow Resist. (WG) |
.10" |
.10" |
.10" |
.10" |
.10" |
.10" |
Cabinet Dimensions |
||||||
W- Width |
44-7/16" |
51-5/16" |
65-3/4" |
44-7/16" |
51-5/16" |
65-3/4" |
X- Duct Opening |
40-5/16" |
47-13/16" |
62-1/4" |
40-15/16" |
47-13/16" |
62-1/4" |
Y- Height |
41-1/2" |
41-1/2" |
41-1/2" |
60" |
60" |
60" |
Z- Duct Height |
34-3/8" |
34-3/8" |
34-3/8" |
52-7/8" |
52-7/8" |
52-7/8" |
Cell Removal Clear. |
25" |
27" |
25" |
25" |
27" |
25" |
Approx. Shipping Wt. |
325 Lbs. |
350 Lbs. |
400 Lbs. |
450 Lbs. |
500 Lbs. |
600 Lbs. |
Power Packs: |
2 |
2 |
2 |
3 |
3 |
3 |
Volts |
115 |
115 |
115 |
115 |
115 |
115 |
Hertz |
60 |
60 |
60 |
60 |
60 |
60 |
Watts (Per Pack) |
45 |
50 |
25 |
45 |
50 |
45 |
Integral Wash Systems |
||||||
Water Inlet |
3/4" |
3/4" |
3/4" |
3/4" |
3/4" |
3/4" |
Drain Flange, IPS |
2" |
2" |
2" |
2" |
2" |
2" |
Water Req. at 40 PSI Per Tier (GPM) |
20 |
22 |
29 |
20 |
22 |
29 |
*- Prefix the model number with C for Commercial units & I for Industrial units.
*-Larger models available on request
Note:
1. If the pollutant to be filtered is a dense cloud, the capacity of the precipitator should generally
1. be doubled. This will provide efficiency and also reduce the frequency of maintenance.
1. Rental units are available for testing.
2. The industrial units can handle temperatures up to 180¢XF.
3. Units as low as 400 cfm are available upon request.
4. Units for suspension are supplied without legs.
5. All units can be used outdoors, but must be ordered for such use since they would require
5. remote power packs.
6. A power pack is used for each tier of Collecting Cells to assure at least partial performance
6. in the event of a malfunction. It also simplifies service by interchanging power packs or
6. components.
ACCESSORIES:
1. Control A-Which is a manually initiated Timer designed to wash and dry the Precipitator
1. through a single push button control.
2. Initiator Clock- Used with Control A to provide completely automatic wash and dry cycle of
2. the Precipitator at a selected hour, daily, or weekly interval.
3. Kit for Roof Top or Remotely Located Power Pack.
4. Detergent Pump.
TEL : 886-4-25294792 FAX : 886-4-25294793
