IUNG CHENG FA MAGIC MAID TM DELUXE PRECIPITATOR
RESIDENTIAL, WATER WASH (HORIZONTAL & VERTICAL FLOW)

2-1/2 Ton Through 3 Ton Units
SPECIFICATIONS MODEL 4-10H MODEL 4-10V MODEL 4-12H MODEL 4-12V
Air Flow Capacity At 90% Efficiency Horizontal 1000 cfm Vertical 1000 cfm Horizontal 1200 cfm Vertical 1200 cfm
Air Conditioner Tons 2 1/2 Tons 2 1/2 Tons 3 Tons 3 Tons
Air Flow Resistance (wg) .10" .10" .10" .10"
Cabinet Dimensions:
W-width 22-11/16" 22-9/16" 26-1/8" 26"
X-Duct Opening 19-5/8" 19-5/8" 23-1/16" 23-1/16"
Cell Removal Clearance 24" 24" 27". 27"
Legs & Cradle Optional Standard Optional Standard
Approximate Shipping Wt. 85 lbs. 105 lbs. 95 lbs. 115 lbs.
Power Pack:
Volts 115 115 110 110
Cycles 60 60 60 60
Watts 28 28 30 30
Water Wash System:
Water Inlet 1/2" 1/2" 1/2" 1/2"
Drain Nipple 1-1/2" 1-1/2" 1-1/2" 1-1/2"
Hot Water (GPM) at 125 F At 30 PSIG-Suggested 7 7 8 8
4 Ton Through 5 Ton Units
SPECIFICATIONS MODEL 4-16H MODEL 4-16V MODEL 4-20H MODEL 4-20V
Air Flow Capacity At 90% Efficiency Horizontal 1600 cfm Vertical 1600 cfm Horizontal 2000 cfm Vertical 2000 cfm
Air Conditioner Tons 4 Tons 4 Tons 5 Tons 5 Tons
Air Flow Resistance (wg) .10" .10" .10" .10"
Cabinet Dimensions:
W-width 35-3/4" 35-5/8" 44" 43-7/8"
X-Duct Opening 32-5/8" 32-11/16" 40-7/8" 40-15/16"
Cell Removal Clearance 20" 20" 24" 24"
Legs & Cradle Optional Standard Optional Standard
Approximate Shipping Wt. 120 lbs. 145 lbs. 150 lbs. 175 lbs.
Power Pack:
Volts 110 110 110 110
Cycles 60 60 60 60
Watts 40 40 45 45
Water Wash System:
Water Inlet 1/2" 1/2" 3/4" 3/4"
Drain Nipple 1-1/2" 1-1/2" 1-1/2" 1-1/2"
Hot Water (GPM) at 125 F At 30 PSIG-Suggested 10 10 13 13

Efficiency as determined by ASHRAE 52-76 Test Method using Atmospheric Air

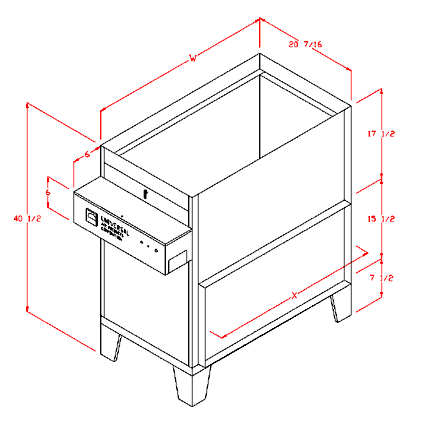

Vertical Flow
Vertical Flow
  • Vertical flow units are shipped for the flow down and out the left side.
  • Flow direction is easily reversed.

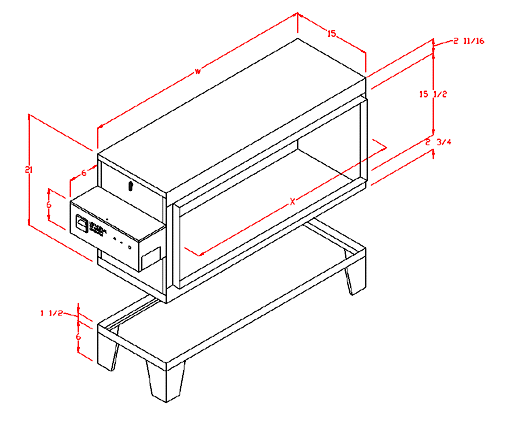

Horizontal Flow
Horizontal Flow
  • Horizontal flow cabinets are shipped with air flow from left to right facing control panel.
  • Direction of air flow is easily reversed.
  • Horizontal flow units can be suspended or floor mounted.
  • All are furnished with bolts for suspension.

Right Hand Mount
Right Hand
Left Hand Mount
Left Hand
Suspended Mount
Suspended
