IUNG CHENG FA MAGIC MAID TM DELUXE PRECIPITATOR
INDUSTRIAL, SELF-CONTAINED (WITH BLOWER)
| STOPS SMOKE, FUMES, DUST AND MISTS In .01 micron in size and larger from: Welding, Brazing, Soldering, Grinding, Cold Forming, Machining, Induction Heating, Quenching, Plastic and Rubber Fabrication and others. |
|
| REQUIRES NO EXTERNAL EXHAUSTING Cleans and recirculates air instead of exhausting it. Recycles heated or cooled interior air and requires no expensive air makeup. Helps comply with EPS guidelines. |
| IMPROVES EMPLOYEE MORALE By providing safer working conditions and helps meet government standards as required by OSHA agency. General cleaning and production costs can also drop in a smoke-free and dust-free shop. |
| SAVES ENERGY - SAVES MONEY TOO! Operates on very little energy. Reduces heated or cooled make up air. |
| RECOVERS VALUABLE PROCESS MATERIALS Captures and reclaims reusable components and liquids. Generally speaking, anything that is particulate can be collected by the air precipitator. |
 ELECTRICAL CHARACTERISTICS 115V 60 HZ 230V/480V/3/60 HZ 50 HZ Available on request |
|||

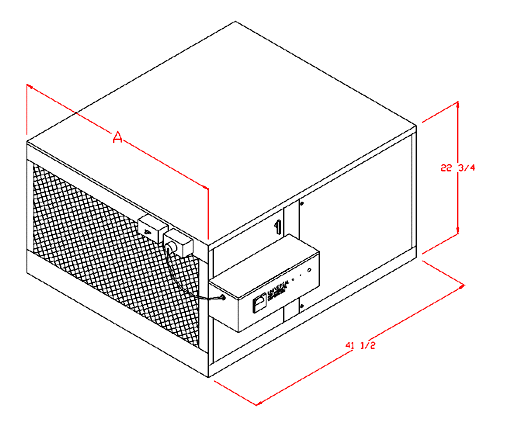

MIGHTY ION SPECIFICATIONS |
|||
| MODEL | Cfm | A | WEIGHT |
| M.I. 8 | 800 | 19" | 200 lbs. |
| M.I. 10 | 1000 | 23-1/8" | 225 lbs. |
| M.l. 12 | 1200 | 26-9/16" | 250 lbs. |
| M.l. 16 | 1600 | 36-1/8" | 300 lbs. |
| M.I. 20 | 2000 | 44-3/8" | 400 lbs. |
| M.I 24 | 2400 | 51-1/4" | 450lbs. |
*- Larger sizes available on request
*- Water wash systems available
*- Source capture plenums available

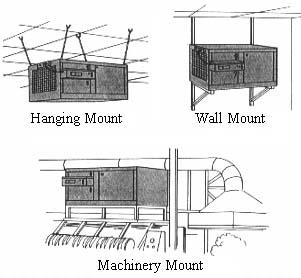

EASY INSTALLATION |
SIMPLE MAINTENANCE |
DURABLE CONSTRUCTION |
